Description

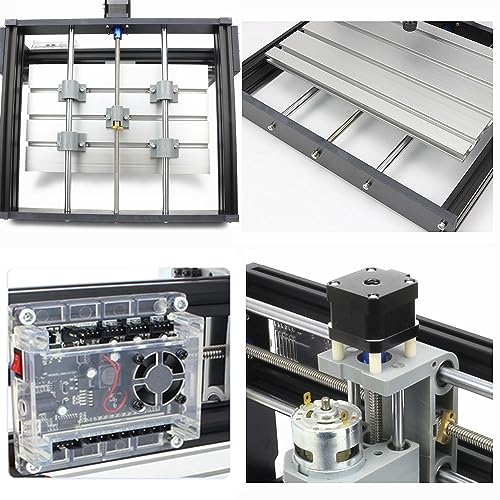

- Model: 3018-PRO; Type: USB Port Desktop cnc router; The sturdy outer frame is made of resin,the workbench is made of aluminum alloy,and the screw material is made of stainless steel,making the machine more lightweight,delicate and durable,and is highly favored by CNC beginners and enthusiasts
- Main Feature: Working area:300x180x45mm / 11.8 x 7.1 x 1.8 inches;Frame size: 420x350x270mm / 16.53×13.78×10.63 inches; Spindle: 775 spindle motor 120W (12-36V) 24V:10000rpm ; Stepper Motor: Nema17 stepper motor 1.33A,42x42x34mm,0.3N.m,43oz-in
- Upgraded GRBL1.1f Control Board: Added the outer casing,E-stop button port,offline controller port,probe port,X/Y/Z axis limit port and add the power button switch,and come with the fan port to force heat dissipation,with enhanced spindle drive,can support max 20000rpm spindle,and also can support 12V 3-PIN 0.5W-20W engraver module
- GRBL Software: Our parcel include 4G USB flash drive,pls download the installation instructions,user manual and GRBL software from the USB flash drive; System requirements: Windows XP SP3,Win 7,Win 8,Win 10,Win 11 32/64 can be and Linux
- Application: Can be engraved plastic, wood, acrylic, pvc, pcb, wood and the like material.soft metal like copper and aluminum and other materials; If you have the engraver module,you also can change the spindle to a 3-pin PWM engraver module,then also can carve on kraft paper, wood, leather etc
