Description
- High Efficiency. RCOG-28V multi-functional drilling and milling machine has rich functions, can meet the metal, wood, plastic, Buddha beads and other finishing, all copper brushless motor, strong power, simple operation, high processing accuracy, is the home DIY processing of various parts of the necessary machine.

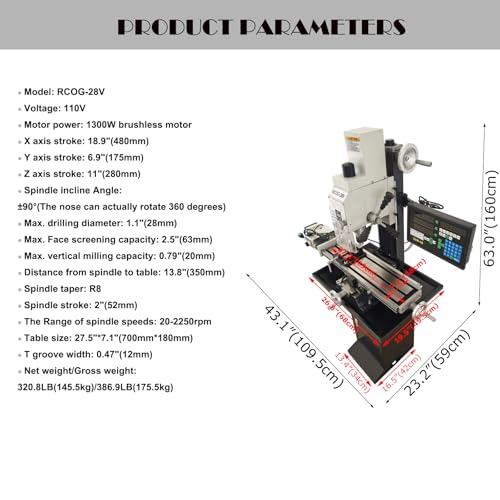

- Mill Drill Machine Parameters: Spindle incline Angle: ±90°, X axis stroke: 18.9"(480mm), Y axis stroke: 6.9"(175mm), Z axis stroke: 11"(280mm), Spindle taper: R8, Spindle stroke: 2"(52mm), Table size: 27.2"*7.1"(690mm*180mm), T groove width: 0.47"(12mm)
- With 3-axis Grating Ruler. The Mini Milling Drilling Machine equipped with three-axis grating rulers, includes zero clear, preset, inch/metric display, relative/absolute switch, automatic sub-centers, calculator, power failure memory, RI and other functions, greatly improve the processing efficiency and accuracy.
- Integrated Cross Worktable. Our working table measures 27.5"x7.1"(700mmx180mm). The table is artificially fine-grinded, cast integrally, with high precision positioning adjustment scale, and includes a T-slot for convenient fixture fixation. Crafted for high quality, it's both reliable.

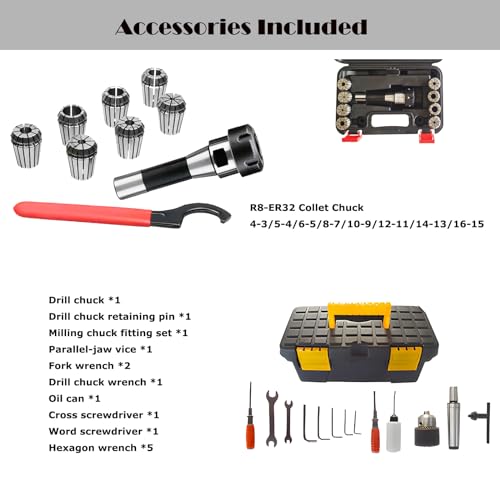

- With R8-ER32 Drill Chucks. The Mini Milling Machine has a R8 metric thread, comes with a set of high precision R8-ER32 chucks. The chucks come in various sizes: 4-3/5-4/6-5/8-7/10-9/12-11/14-13/16-15.
