Description

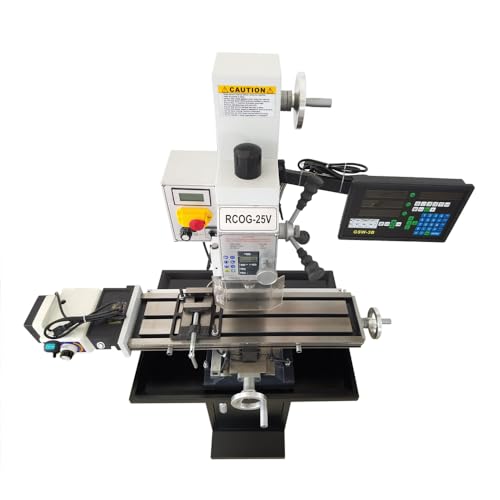

- 【Precision Engineering】 Equipped with an ultra-accurate R8 spindle taper, this mini drilling and milling machine ensures versatility and precision for a wide range of milling and drilling tasks.The Range of spindle speeds: 50-2250rpm
- 【Enhanced Feed System】Features an X-axis power feed for smooth, quiet operation, enhancing both efficiency and accuracy. The X-axis stroke is 18.9" (480mm), Y-axis stroke is 6.9", Z-axis stroke is 11", and the table size is 27.2" x 7.1". The power feed operates at 110V with 95W power and a speed range of 0-200rpm.
- 【Advanced Grating Ruler】 A high-precision 0.005mm accuracy grating ruler with 3-axis control improves productivity and precision. The grating ruler operates on AC110V-220V with 10W power.

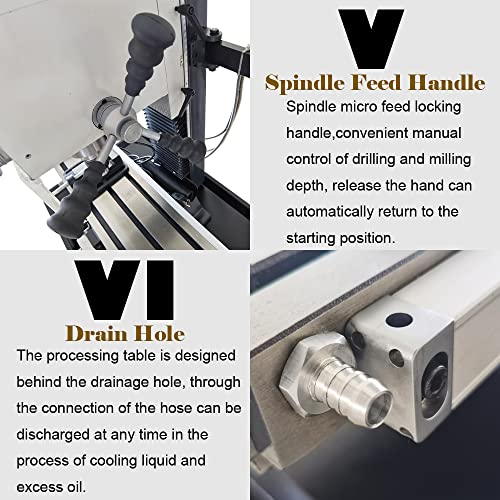

- 【Safe and User-Friendly】 Includes a forward/reverse switch and an emergency stop for secure operation. The handwheel scale is in millimeters, providing precise control.
- 【Durable and Versatile Build】 Constructed with metal gears, a robust shell, and a durable handwheel, this machine is built to last. Suitable for metal, wood, and hobby crafting, it offers stable performance and accurate positioning with an integrated cross table, making it perfect for both DIY and professional projects.
- 【Complete range of accessories】This drilling and milling machine has a full range of accessories, including the base and the corresponding drills, with drill sizes (R8-ER32 : 4-3/6-5/8-7/10-9/12-11/16-15/18-17/20-19).Other accessories are Axis X power feed *1 Grating ruler *1 Drill chuck *1 Drill chuck retaining pin *1 Bench clamp *1 Fork wrench *1 Drill chuck wrench *1 Oil can *1 Cross screwdriver *1 Straight screwdriver *1 Hexagon wrench *4 English manual *1
- 【90° Rotatable head】The head of the machine can betilted to the left and to the right by loosening the fixing screws of the head of the machine.The tilt Angle range is up to 90°which is easy for drilling and milling special angles.
